JLT Clamps

Drawer Clamps

Regular price $5,725.00 USD
Regular price Sale price $5,725.00 USD
Shipping calculated at checkout.
Size

The JLT Heavy Duty Drawer Clamp is Designed to Clamp and Square all Doweled and Dovetail Drawer Construction Types. Our Design is Heavy Duty, Sturdy, Intuitive to Use, and Built to Last. It has Precise Squaring Capabilities with ample Clamping Pressure for your Boxes. A Quick Adjusting Roller Carriage Eliminated Setup Times when moving from Size to Size, and our Fast Acting Pneumatic System will Clamp and Square the Drawer in (2) Seconds.

Available Models:

#190B-M3: 10" x 24" x 36" Capacity

#190B-M3: 12" x 24" x 48" Capacity

#190C: 12" x 48" x 48" Capacity

-- #190B-M3: 36" Heavy Duty Drawer Clamp --

Designed for high production and custom shops who build their own dovetail or doweled drawer boxes.

Features:

  • Easy to Use and Intuitive Air System
  • Quick Adjusting Roller Carriage Eliminates Set-up for Faster Changeovers
  • Aluminum Side Pressure Plates Provide a Solid, Flat Clamping Surface
  • Dual Fast Acting Horizontal Pneumatic Clamps with a 2″ Stroke.

Machine Footprint: 70″L x 60″H x 36″W

-- #190B-M3:  48" Heavy Duty Drawer Clamp --

Designed for high production and custom shops who build their own dovetail or doweled drawer boxes.

Features:

  • Easy to Use and Intuitive Air System
  • Quick Adjusting Roller Carriage Eliminates Set-up for Faster Changeovers
  • Aluminum Side Pressure Plates Provide a Solid, Flat Clamping Surface
  • Dual Fast Acting Horizontal Pneumatic Clamps with a 2″ Stroke.

Machine Footprint: 70″L x 60″H x 36″W

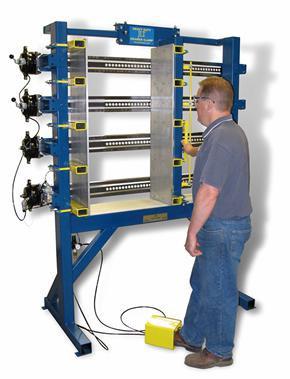

-- #190C: Large Capacity Drawer & Box Clamp--

The JLT Heavy Upper Box and Case Clamp is Designed to Clamp and Square all Doweled and Dovetail Box Construction Types. Our Design is Heavy Duty, Sturdy, Intuitive to Use, and Built to Last. It has Precise Squaring Capabilities with ample Clamping Pressure for your Boxes. A Quick Adjusting Roller Carriage Eliminated Setup Times when moving from Size to Size, and our Fast Acting Pneumatic System will Clamp and Square the Box in (2) Seconds.

Clamp up all of Upper Boxes, Dovetail or Doweled Drawers and Case Goods Quickly and Efficiently

Features:

  • Large Capacity 12″ x 48″ x 48″
  • Pneumatically Operated with Foot Pedal Activation
  • Includes (4) Heavy Duty Pneumatic Horizontal Clamps
  • Side Mounted Pressure Hold Kit with Lever Valve Activation
  • Produces up to 3500# of Clamping Pressure
  • Upright Vertical Working Design
  • Shipped Pre-Assembled

Machine Footprint: 82″L x 86″H x 36″W
